Frameless Glass Balustrade with Glass Stiffeners
This frameless glass balustrade with glass stiffeners was installed around a raised modern terrace overlooking a landscaped garden.
The clear glass protects the exposed terrace edges without placing a row of metal posts across the view. It sits inside an anthracite powder-coated base track that coordinates with the dark doors, windows and exterior trim.
Glass stiffeners were added at selected positions to increase the feeling of rigidity. They were not required as part of the standard balustrade arrangement, but the client preferred the firmer feel they provided.
A short three-tread patterned steel staircase was also manufactured and installed beside the doorway, creating a compact transition between the two terrace levels.
Get pricing for a frameless glass balustrade
Send photographs of your terrace, approximate measurements and your postcode. We will review the layout and return clear options.
Why Glass Stiffeners Were Added
A frameless glass system keeps the main terrace edge clear because the panels do not need a regular row of traditional balustrade posts.
On this project, clear glass stiffeners sit at right angles to selected main panels. The stiffeners are less visually prominent than solid metal uprights and allow the balustrade to retain its frameless appearance.
The standard glass and track arrangement did not require these additions. They were included because the client wanted increased rigidity and less noticeable movement when using the terrace.

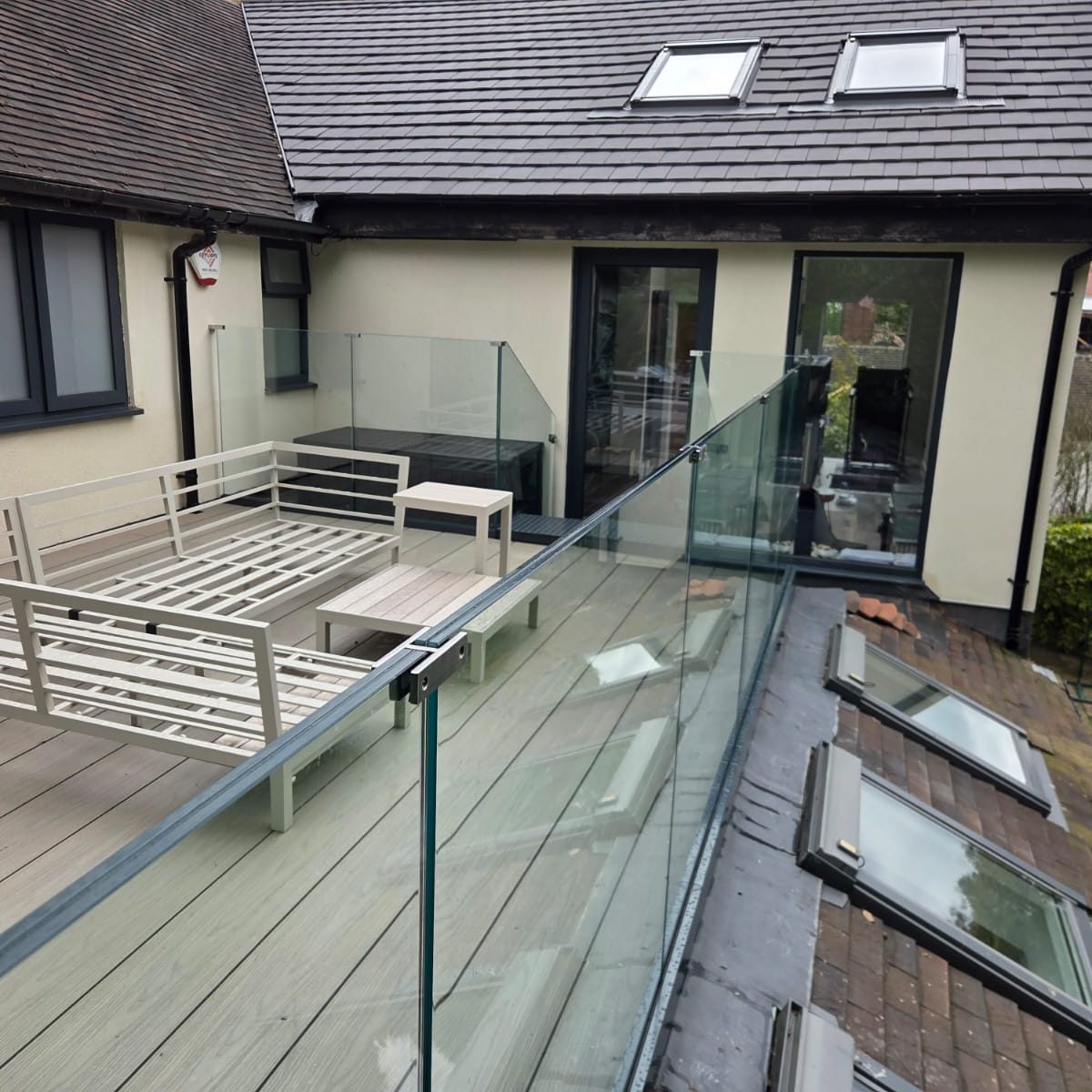

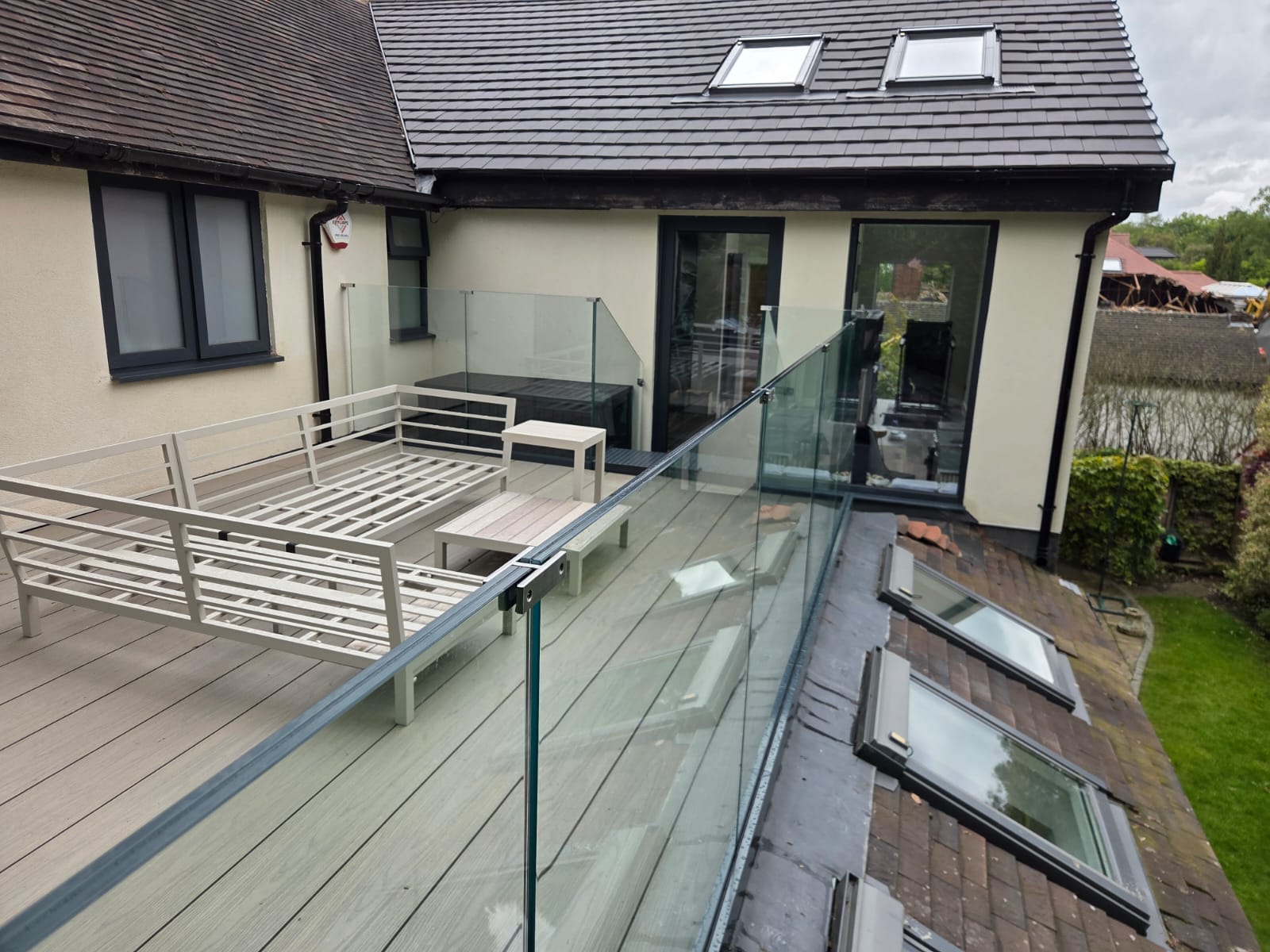

The side view shows how the stiffeners connect to the main glass line without interrupting the view across the garden. From most positions, the clear panels remain the main visible feature.
Glass stiffeners will not suit every layout. Panel dimensions, exposure, corners, returns and the supporting structure must all be considered before the final system is confirmed.
Anthracite Track and Three-Tread Steel Staircase
The aluminium base track was powder coated anthracite rather than being left in its standard metallic finish.
This gives the base of the balustrade a defined dark line and connects it visually with the property’s doors, window frames, roof details and other exterior metalwork.
The dark track contrasts with the pale composite decking without making the terrace edge feel heavy. The clear glass above retains the garden views.

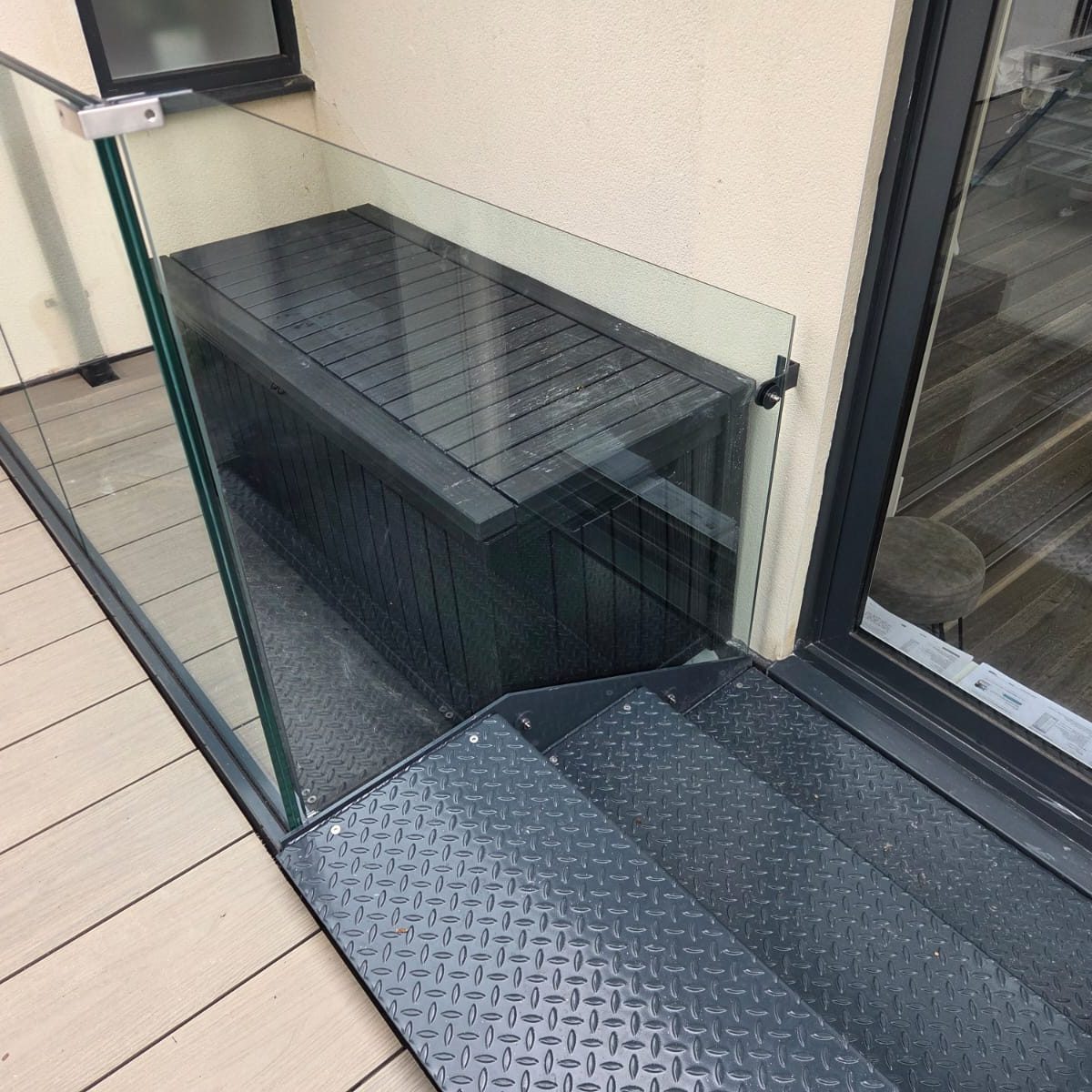

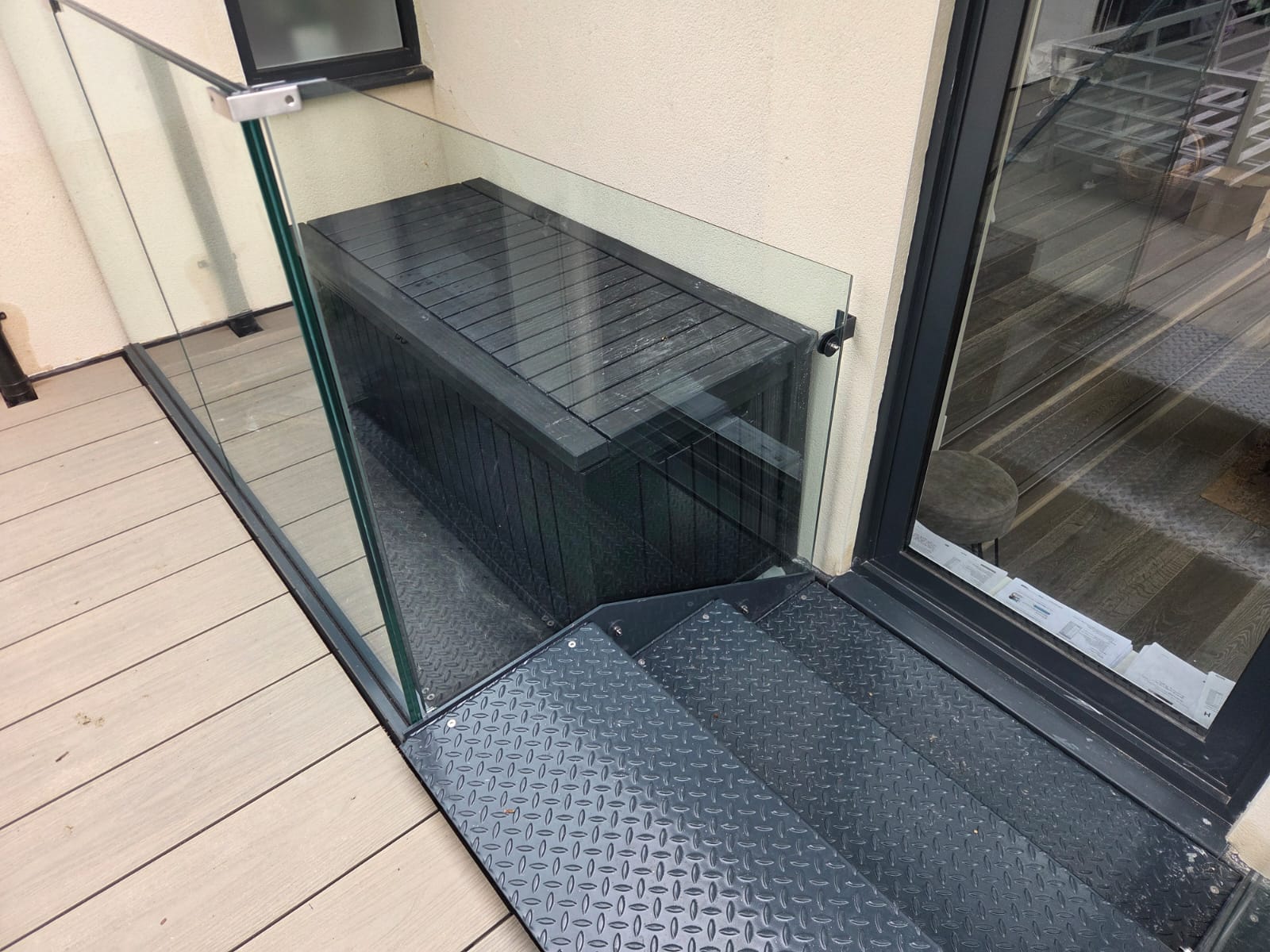

A compact steel staircase was installed beside the doorway where the terrace changes level. It includes three patterned steel treads and a dark powder-coated finish to match the surrounding metalwork.
The patterned tread surface provides grip underfoot. Its short layout manages the change in level without taking unnecessary space from the terrace.
A Frameless Glass Balustrade for a Raised Terrace

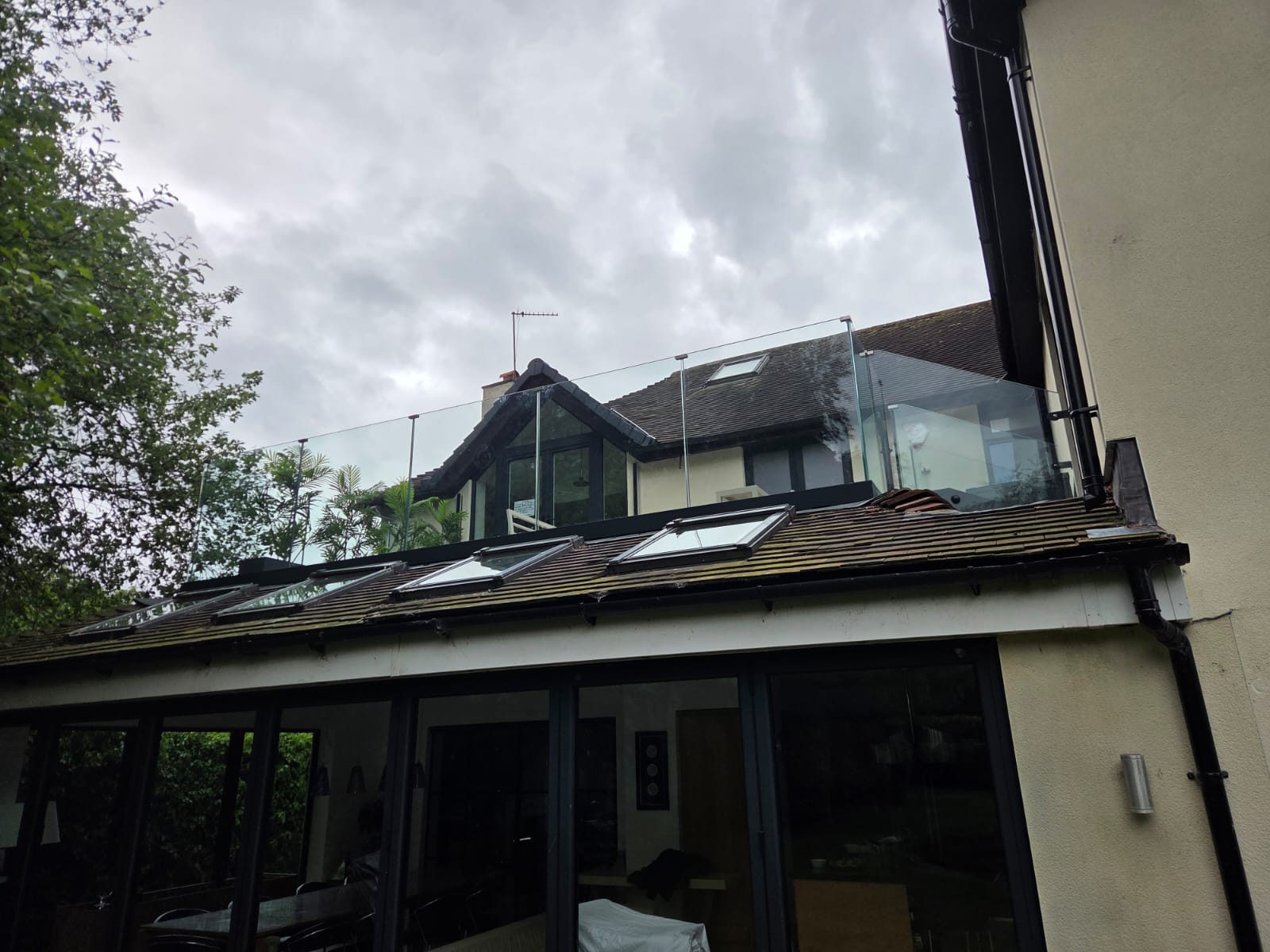

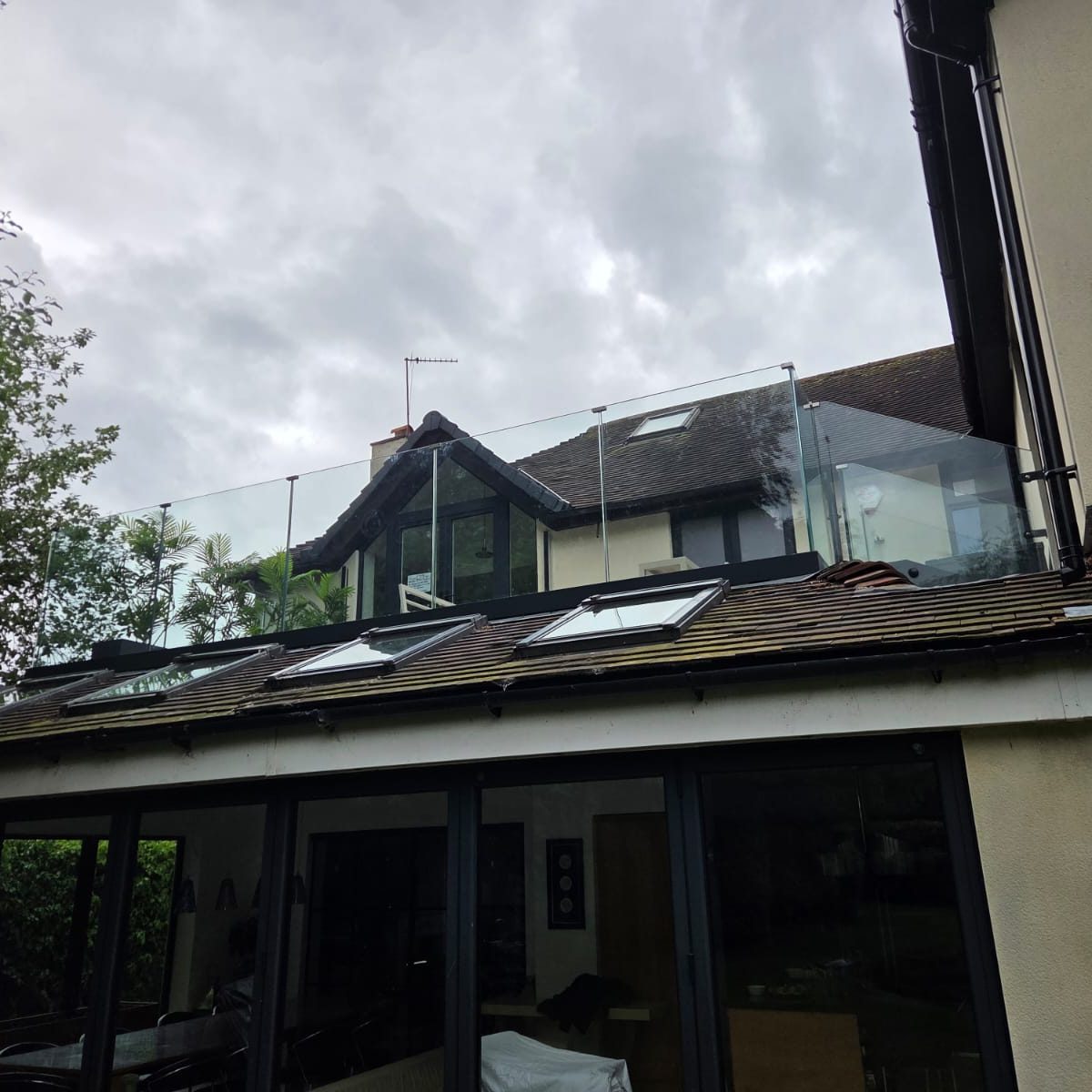

The ground-level view shows the full height and position of the terrace above the lower roof. It also shows why a clear guarding system suited this property.
A conventional system with closely spaced steel or timber posts would have created a stronger visual barrier across the upper floor. The frameless glass balustrade protects the terrace edge while retaining the open appearance of the extension.

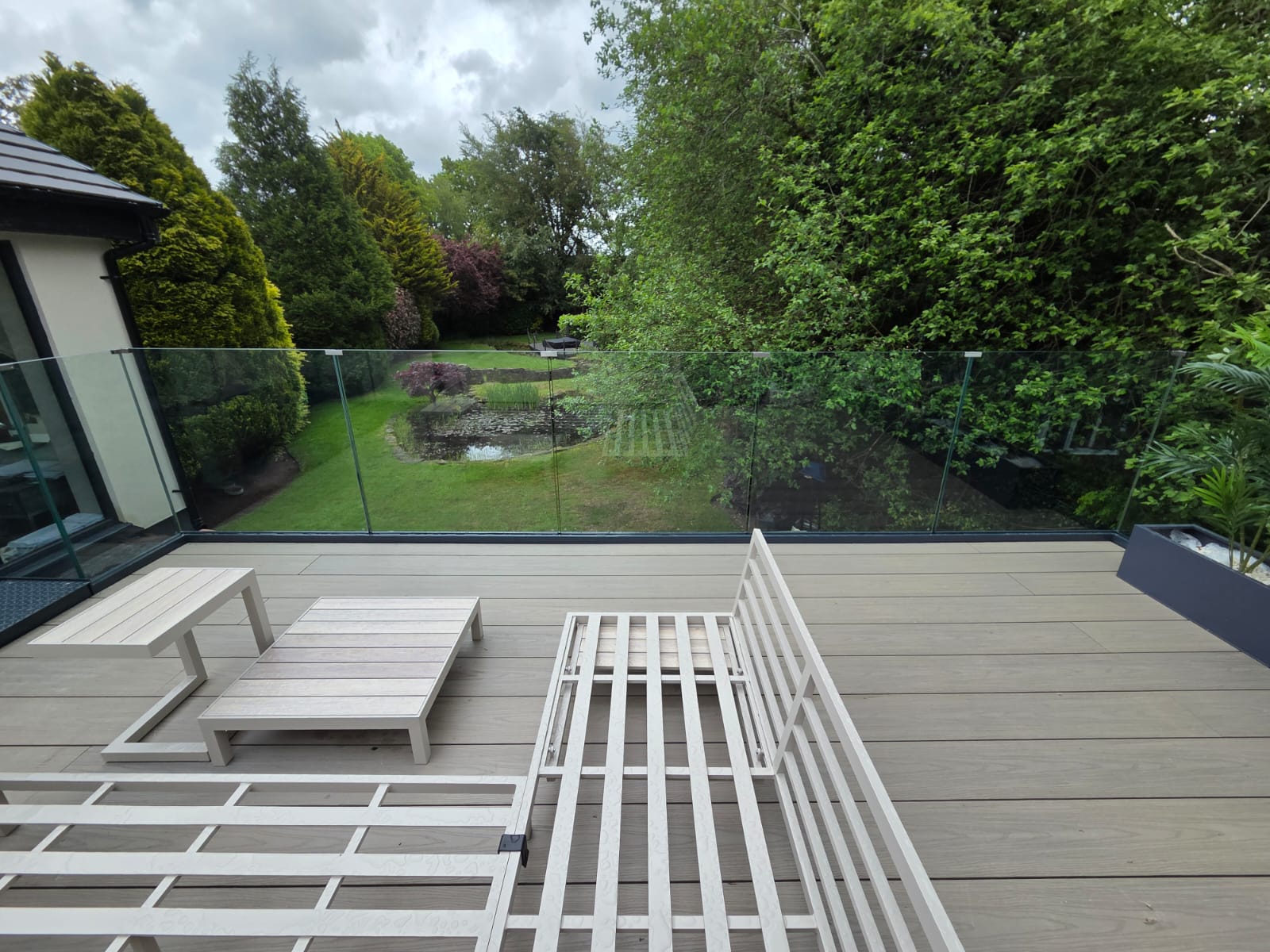

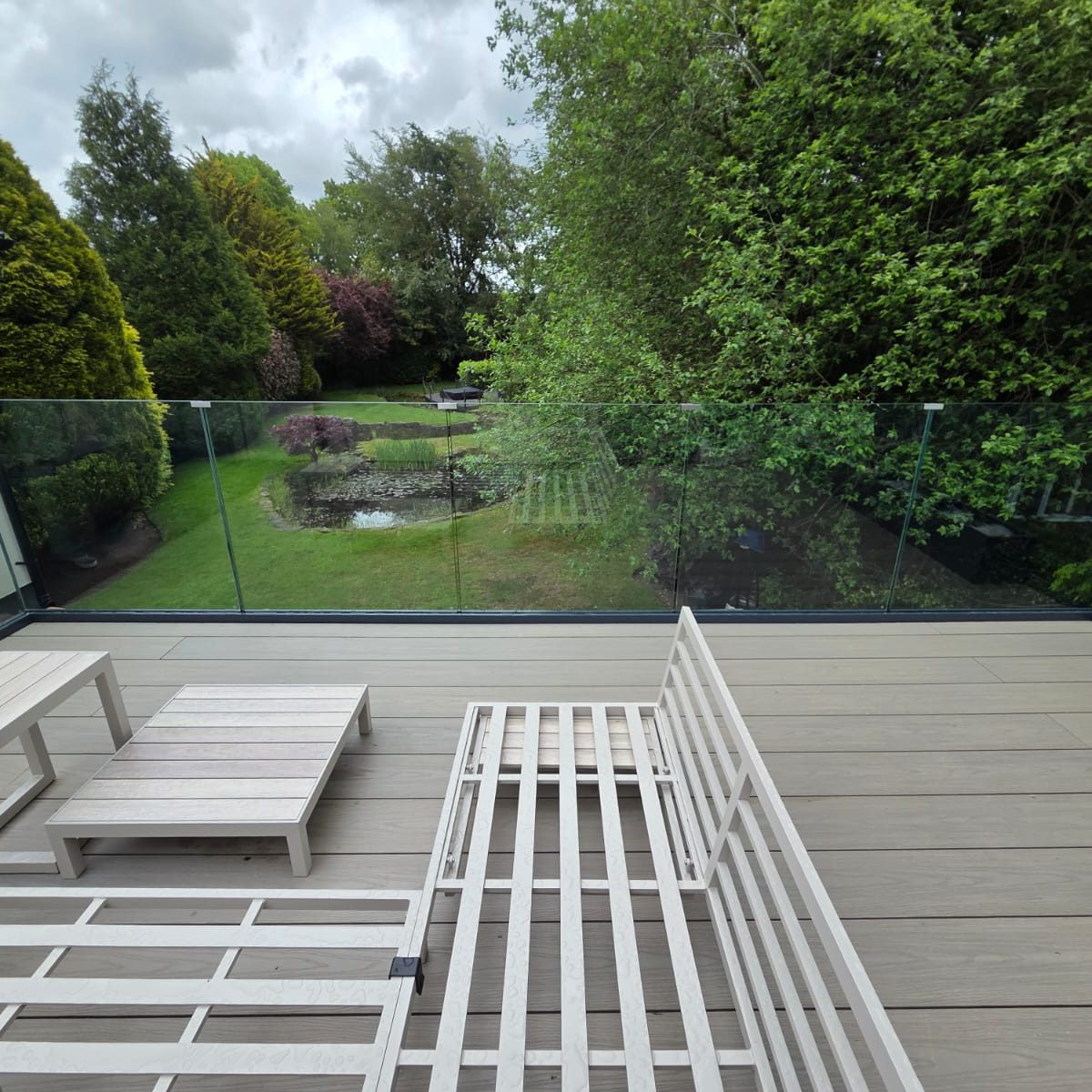

From the terrace, the glass allows views into the garden and pond. From ground level, it avoids placing a heavy railing across the upper part of the house.
The system follows several straight runs and returns around the terrace. It also works around the doorway, level change and compact staircase as one complete installation.
How the Terrace Balustrade Was Planned
We began by reviewing the terrace shape, exposed edges, doorway locations and changes in level. This allowed the glass runs, corners and staircase opening to be considered as one complete system.
A site survey was then completed to record the finished dimensions and assess the available fixing areas. Accurate measurements matter with frameless glass because each panel, joint and corner must line up with the track below.
The glass was manufactured to suit the surveyed openings. The aluminium track and steel staircase were prepared with their agreed powder-coated finishes before being delivered to site.
During installation, the base track was positioned and aligned before the main glass panels were fitted. The additional glass stiffeners were then installed at the selected locations.
The completed run was checked for alignment, finish and consistency around the corners, doorway and staircase area.

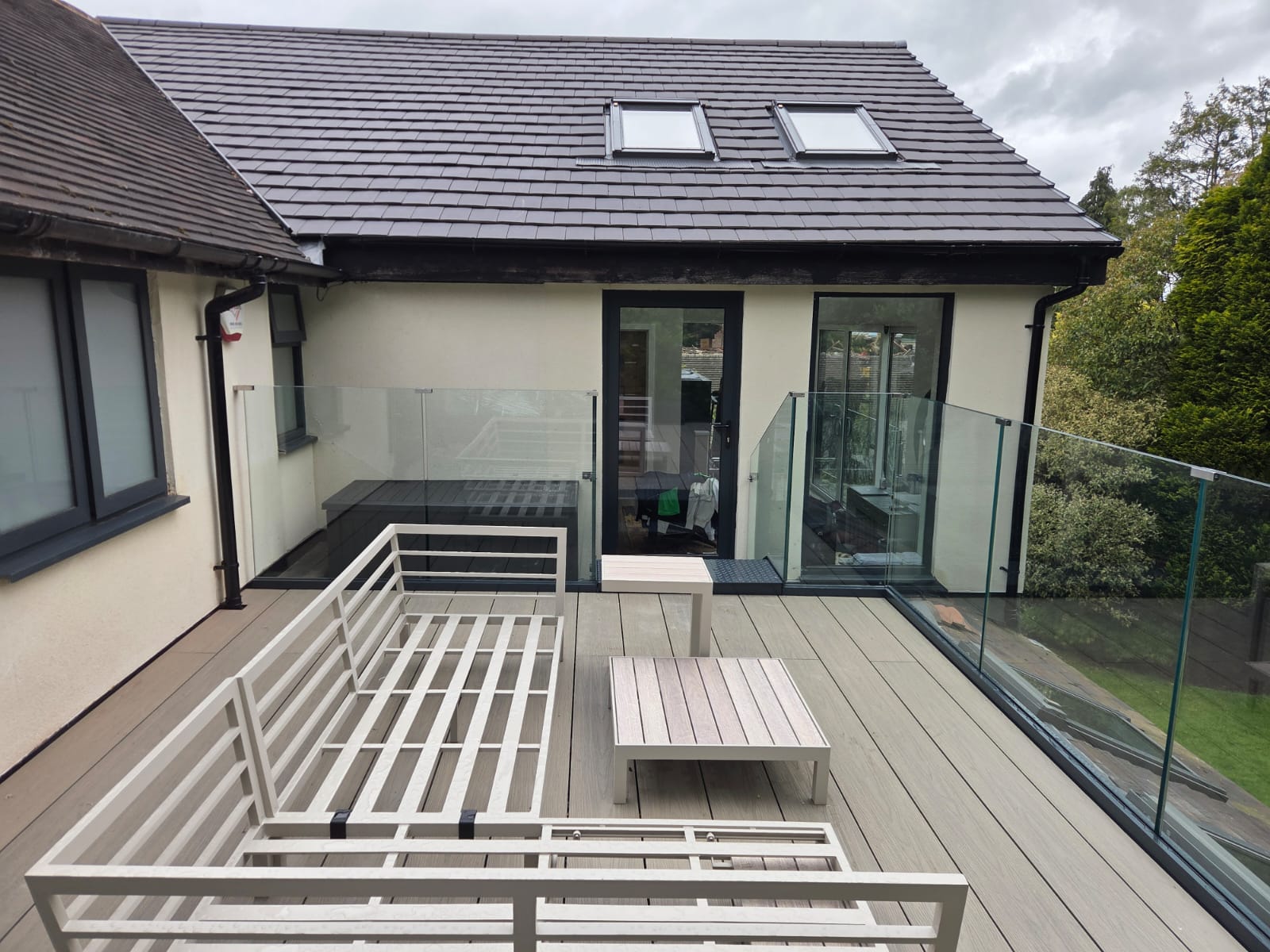

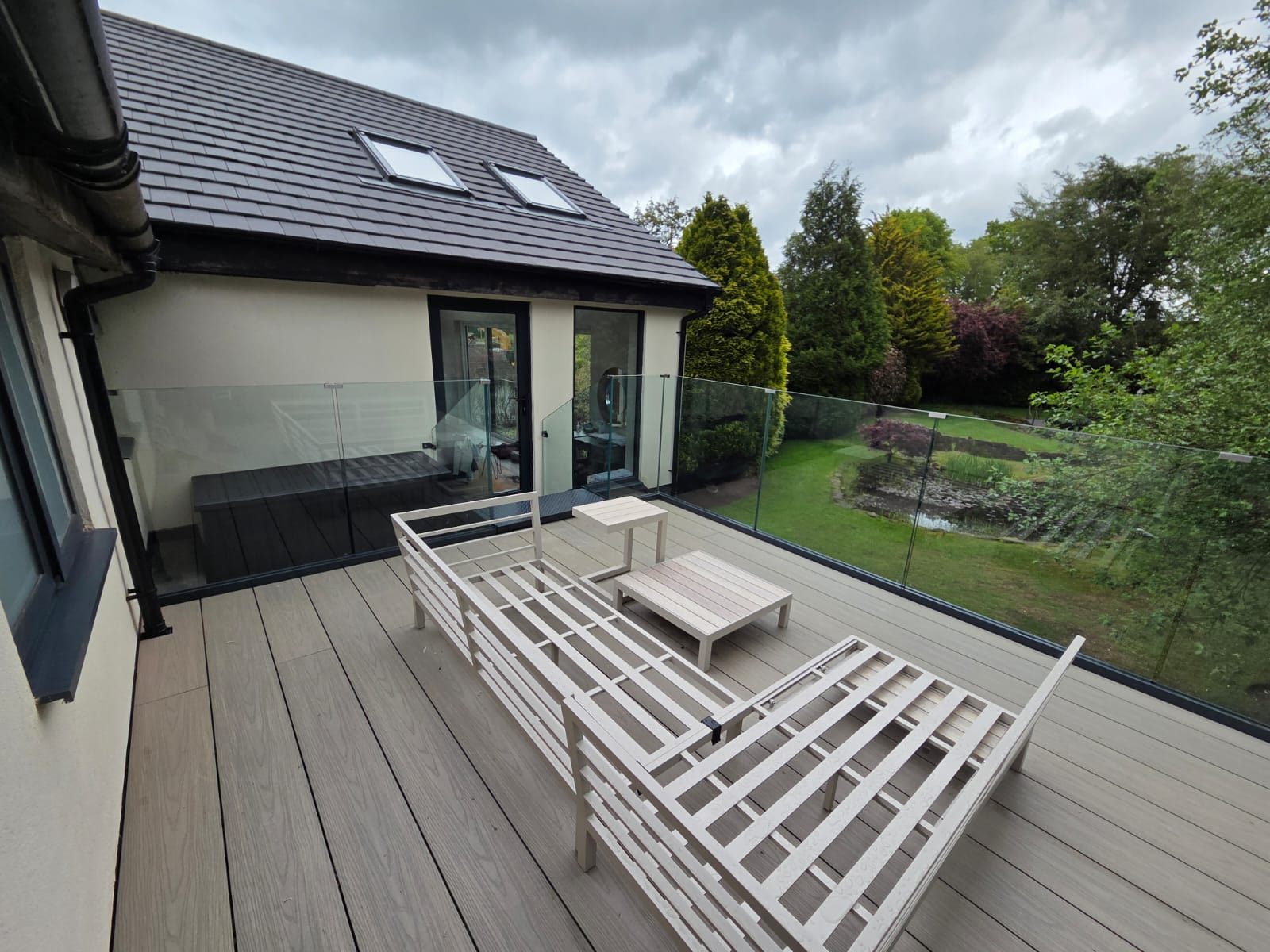

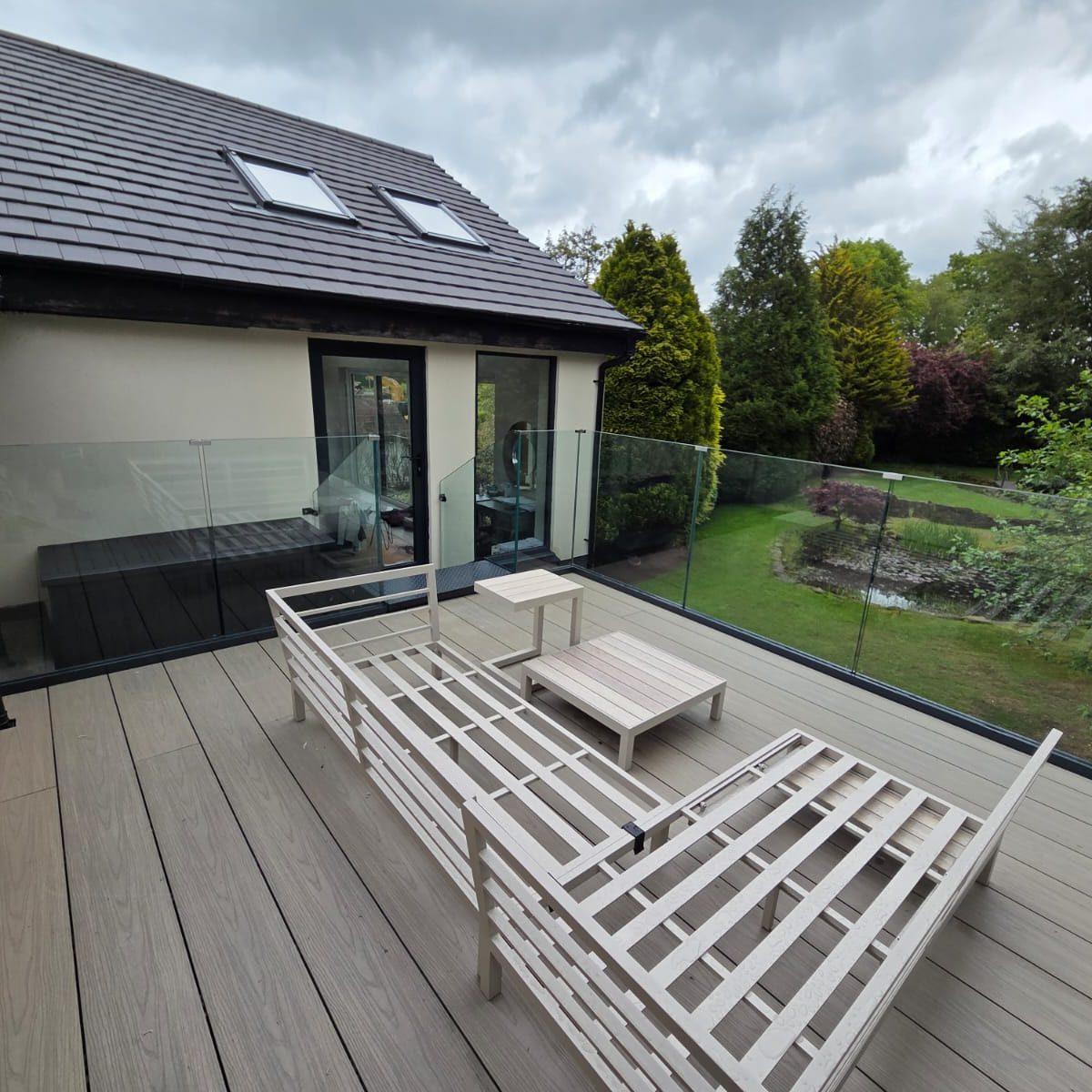

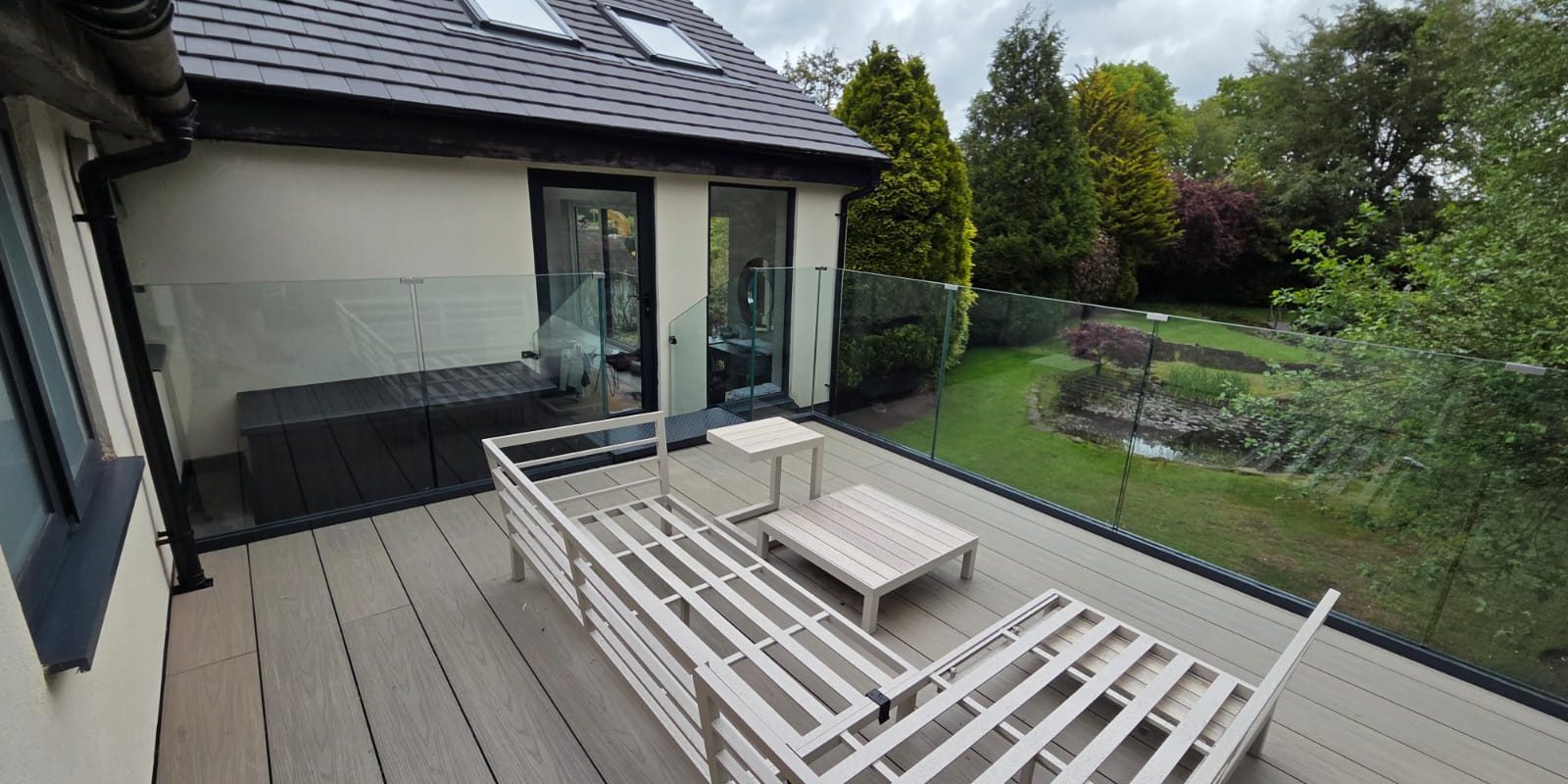

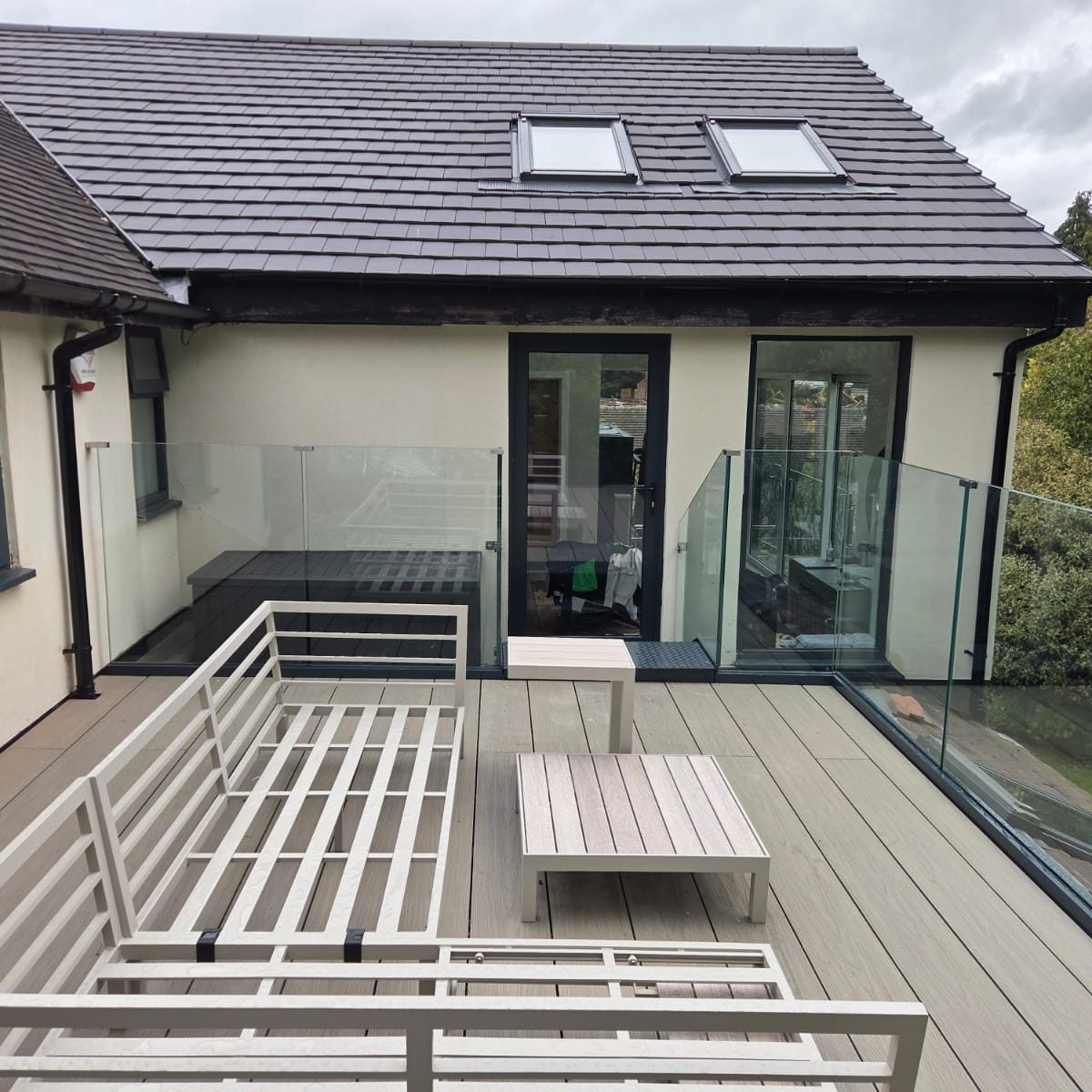

Finished Terrace Views
The completed terrace has clear guarding around its open sides, protection around the staircase opening and a consistent anthracite finish along the base of the glass.
Materials and Finish Options
This frameless glass balustrade with glass stiffeners combines clear glass panels, clear stiffening panels, an anthracite powder-coated aluminium track and a powder-coated steel staircase with three patterned treads.
The pale composite terrace boards contrast with the dark track and staircase. The clear glass sits above these elements without blocking the surrounding garden.
Other powder-coat colours can be considered where the track needs to coordinate with windows, doors, cladding or other architectural metalwork.
Clear, tinted and privacy glass options may also be available, depending on the layout and required performance.
Building Regulations and Balustrade Safety
Raised terrace guarding must be designed around the fall height, location, intended use, barrier height, loading and supporting structure. Photographs and rough measurements can support an initial quotation, but they cannot confirm the final glass or fixing specification.
The Glass Balustrade Company designs balustrades with reference to BS 6180:2011 for barriers in and about buildings and the relevant guidance in Approved Document K.
Further information is available in the LABC guidance for structural glass and balustrade design.
Frameless Glass Balustrade Questions
Are glass stiffeners always required?
No. On this project, they were an additional feature rather than a requirement of the main glass and track arrangement.
Do glass stiffeners block the view?
They create a visible glass edge from certain angles, but they are less prominent than solid steel or aluminium posts.
Can the glass track be powder coated in other colours?
Yes. The aluminium track can be powder coated in a range of colours to coordinate with the property.
Can the staircase be included with the balustrade?
Yes. The Glass Balustrade Company can quote associated architectural steelwork, short access stairs and larger steel staircase structures.
Can frameless glass follow corners and level changes?
Yes. Frameless glass systems can be designed around straight runs, corners, returns, stairs and stepped areas.
Getting a Quote
Send photographs showing the complete terrace, approximate lengths for each glass run, details of any steps or changes in level, your preferred track colour and the project postcode.
The first measurements do not need to be final survey dimensions. They allow us to understand the general layout and advise what further information will be needed.
